Bionet ECG machines are professional-grade electrocardiographs used across Australian clinics, hospitals, and cardiology practices. Docstock stocks the full Bionet Cardio range — including the flagship Q50 and Q70 standalone units and the PC-based Cardio P1 — all featuring Bionet's proprietary ST-Map interpretation software, TGA-registered for clinical use in Australia.
Bionet has manufactured medical monitoring equipment, with a focus on diagnostic accuracy and clinician workflow.
Choosing the right Bionet ECG for your practice
The right Bionet ECG depends on how you'll use it. The three main models sit at different points in the range from PC-based cardiology diagnostics through to standalone units designed for general practice throughput.
The Cardio Q50 is Bionet's most widely deployed model in Australian general practice. It's a standalone 12-lead ECG with built-in interpretation software, 7-inch colour touchscreen, and thermal printer. Ideal for clinics that want a self-contained unit without dependency on a PC or laptop.

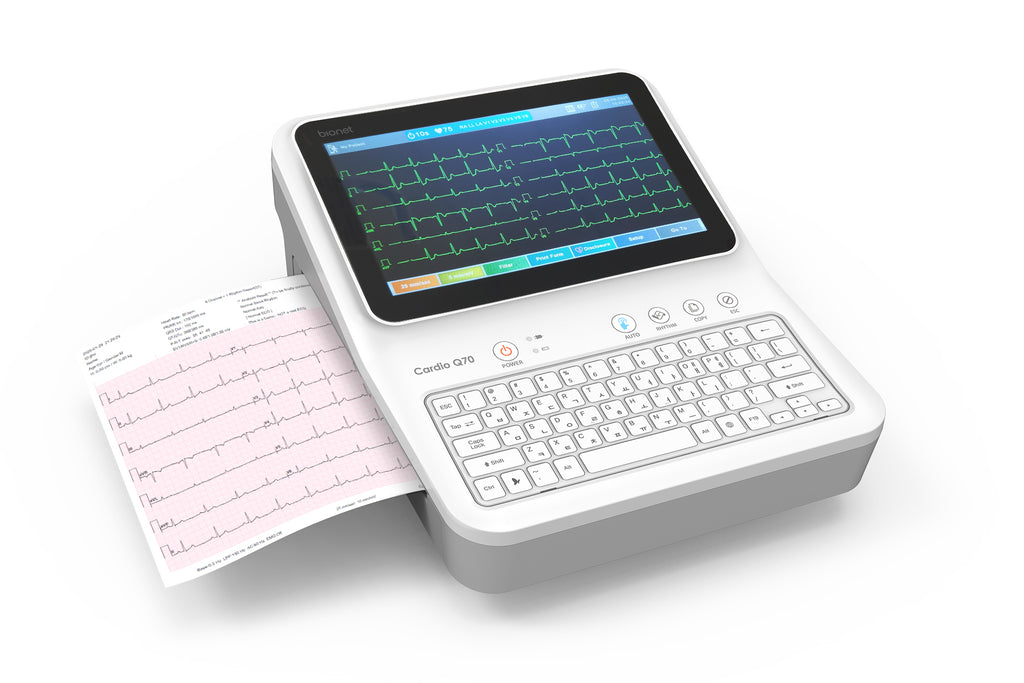

The Cardio Q70 steps up to a larger 10.4-inch display, WiFi and LAN connectivity for EMR integration, and additional analysis functions including exercise stress testing capability with the appropriate accessories. Better suited to specialist practices, cardiology clinics, and hospitals where the ECG needs to feed directly into patient records.
The Cardio P1 is a PC-based ECG system — the recording module connects to a laptop or desktop running Bionet's clinical software. This suits practices that already have workstation-based clinical workflows and want the ECG data managed within existing software rather than on a standalone device.
Comparison: Bionet ECG range
| Model | Best for | Type | Display | Connectivity |
|---|---|---|---|---|
| Cardio Q50 | General practice, GP clinics | Standalone 12-lead | 7" colour touchscreen | USB, LAN |
| Cardio Q70 | Specialist clinics, cardiology, hospitals | Standalone 12-lead with stress test capability | 10.4" colour touchscreen | WiFi, LAN, EMR integration |
| Cardio P1 | PC-based clinical workflows | PC-based 12-lead recording module | Laptop/desktop display | USB to workstation |
What is ST-Map interpretation software?
ST-Map is Bionet's proprietary ECG interpretation algorithm, developed to identify and visualise ST-segment changes across all 12 leads simultaneously. It provides both automated interpretation and a colour-coded topographic map of ST elevation and depression — helpful for identifying ischaemic changes that might be missed in a standard lead-by-lead reading. ST-Map is included as standard on the Cardio Q50, Q70, and P1.
Frequently asked questions
Are Bionet ECG machines TGA-registered for use in Australia?
Yes. All Bionet Cardio Q-series and P-series ECG machines stocked by Docstock are TGA-registered medical devices. Documentation is available on request and supplied with each unit.
Do Bionet ECGs integrate with Australian EMR systems?
The Cardio Q70 supports HL7-based EMR integration and works with major Australian practice management systems including Best Practice and Medical Director when configured with the appropriate middleware. The Cardio P1 outputs standard DICOM and PDF formats compatible with most clinical software. Our team can advise on integration based on your specific EMR setup.
What's the difference between the Cardio Q50 and Q70?
The Q50 and Q70 share the same core 12-lead ECG functionality and ST-Map interpretation. The Q70 adds a larger display, WiFi connectivity for wireless data export, and the ability to perform exercise stress testing when paired with the appropriate treadmill accessories. For most general practices, the Q50 covers the requirement; the Q70 makes sense when EMR integration or stress testing is needed.
Does the Cardio P1 replace a standalone ECG machine?
The Cardio P1 is a PC-based recording module rather than a standalone unit — it requires a laptop or desktop running Bionet's clinical software to operate. If your practice already runs a workstation-based clinical setup and wants ECG data managed alongside other patient information in software, the P1 works well. If you need portability or a self-contained device that doesn't rely on a PC, the Q50 or Q70 is a better fit.
What warranty do Bionet ECG machines come with?
Bionet provides a 2-year manufacturer warranty on Cardio Q-series and P-series ECG machines. Docstock handles all warranty claims directly on behalf of customers — there's no need to deal with the manufacturer separately.
What accessories come with a Bionet ECG?
Bionet ECG machines are supplied with a patient cable, chest and limb electrodes, thermal paper (Q-series), power supply, and user manual. Additional consumables including replacement electrodes, thermal paper rolls, and patient cables are available separately as accessories.
Do you ship Bionet ECG machines Australia-wide?
Yes, Docstock ships Australia-wide with tracked delivery on all Bionet ECG machines. Standard delivery is 2-5 business days for metro areas, 5-10 business days for regional and remote locations.
