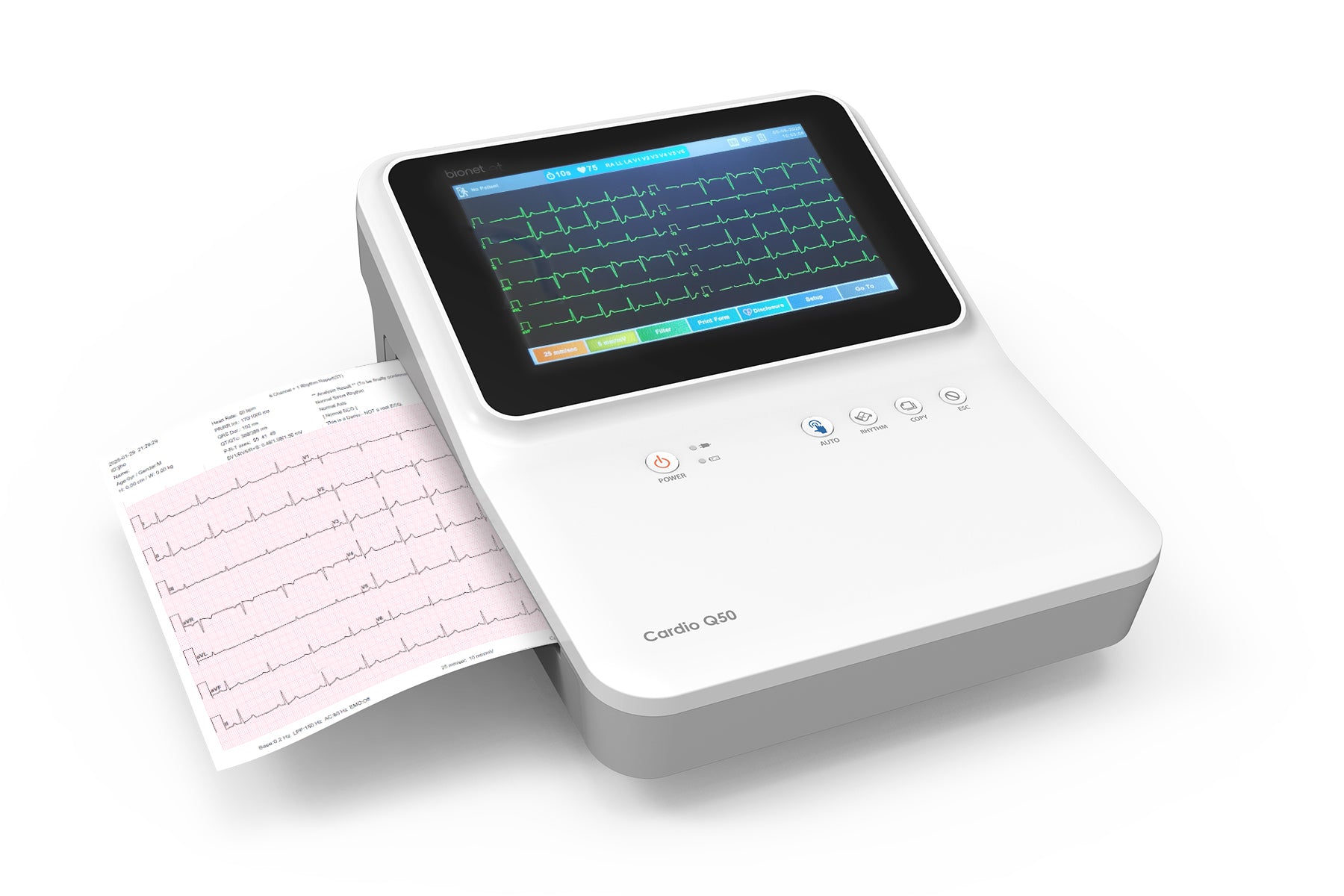

Bionet Q50 12-lead ECG Machine with Interpretation, 8" Colour Touchscreen, Built-in Printer and PDF Output

Life-saving ECG analysis for accurate cardiac interpretation.

When precise resting ECG is crucial, Bionet’s 12ch resting ECG offers an intuitive workflow from acquisition to analysis managing all data for improved interpretation.

Features;

• Large, 8 inch-wide capacitive colour touch screen display
• Quick-access Auto ECG and Rhythm buttons
• 30 min full disclosure capability with up to 30min recording time
• Real-time interpretation for immediate results
• Cardio Q-Series includes Bionet's patented ST Map for clear visualisation of ST Segment Deviation
• Selectable QT correction options: QTcB/QTcF/QTcFram/QTcH
• Built-in Z-fold printer for full-sized configurable A4 reports
• Built-in carry handle for ease of portability between rooms
• Built-in memory for up to 500 tests
• Export PDF reports directly to USB for easy transfer to PC
• HDMI Output for display on large external screens included
• HIPAA-compliant LAN/WiFi/DICOM connectivity capability
• Mains-powered with rechargeable battery for up to 10hrs of normal use
• Inclusions: Device, 10-lead AHA ECG Cable, 1 x Pack of A4 Z-Fold Paper, 1 x Pack of 100 Resting Tab Electrodes, 10 x Electrode Adaptors, Lithium-Ion Battery, AU Power Cord plus Bionet ECG Analysis Algorithm Diagnosis Guide and Instruction Manual.
• Optional Glasgow ECG interpretation algorithm upgrade available (Bionet interpretation included as standard)
• Optional spirometry handle available for COPD, FVC, SVC, MVV testing (avail late 2025)
• Optional bar-code scanner available
• Optional mobile cart available
• Made in South Korea
• 2-year Warranty

Bionet Q50 ECG Machine Brochure

Bionet Cardio Q-Series Quick User Guide

Bionet Cardio Q-Series Instruction Manual
